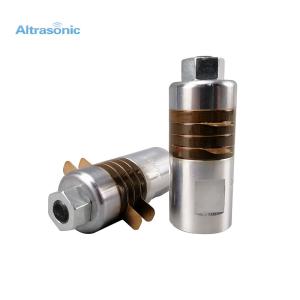

50kHz 600w Ultrasonic Welding Transducer With M18 Joint Bolt
Description:
The transducer is composed of vibrators and booster, which function is to convert electrical signals into mechanical vibration signals, and to realize the conversion of electrical energy to mechanical energy, which is also one of the most important factors in ultrasonic welding technology.
Specification:
| Mode | HS-3050-4Z |
| Frequency | 50kHz |
| Power | 600w |
| Joint bolt | M8 |
| Ceramic disc Diameter | 30mm |
| Quantity of Ceramic discs | 4pcs |
| Capacitance | 5.5-6.2nF |
Competitive advantages:
1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of
piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will
identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
5. The piezoelectric ceramic chip can give a strong and stable output.
Detailed Images:
